CoaXPress 2.0 Frame Grabbers on the Market

CoaXPress 2.0 Frame Grabbers on the Market

CoaXPress is a leading communication standard for high-speed imaging applications in professional and industrial markets.  The success of CoaXPress is due to its ease of use, high bandwidth capability, reliability over longer cable distances, and the ability to have power over the cable.  The interface is robust yet simple which makes it a great solution for many machine vision applications.

As CoaXPress (CXP) is adapted and improved upon, the interface has transitioned to create a new, feature-rich version called CoaXPress 2.0. This new standard improves on many of the V1.1.1 capabilities and offers backwards compatibility. CoaXPress 2.0 is capable of increased speeds up to 12.5 Gb/s over a single cable. With the increased data rate, it is necessary to have a state-of-the-art frame grabber suitable for the high-speed CXP-12 throughput. There are a few options available for frame grabbers that are ready to work with CXP-12, with more on the way.  We have provided some here:

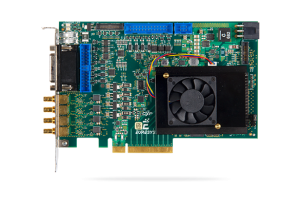

Euresys Coaxlink Quad CXP-12 4-port frame grabber

Euresys Coaxlink Quad CXP-12-Photo Courtesy of Euresys

• 4 CoaXPress CXP-12 ports: 5,000 MB/s camera bandwidth
• PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
• 20 digital I/O lines.
• Euresys Momento logging tool

Euresys Coaxlink Quad CXP-12 JPEG 4-port frame grabber

• 4 CoaXPress CXP-12 ports: 5,000 MB/s camera bandwidth
• PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
• Four 250 MPixel/s JPEG encoders
• Compatible with 8-bit/ pixel Bayer CFA cameras
• Two streams per camera: JPEG stream and RGB preview stream

Matrox Rapixo CXP Quad-Input frame grabber

• Support for the highest speeds available in CoaXPress 2.0
• Connect to and capture from up to four cameras
• Power-Over CoaXPress support simplifies cabling between cameras and vision PC
• Independent auxiliary I/Os per CXP connection
• License Fingerprint for MIL software

Active Silicon FireBird four-link frame grabber

• Fast PCI Express 8-lane Gen3 interface.
• ActiveDMA engine – acquisition with zero CPU usage.
• Supported by ActiveSDK
• Supports PoCXP

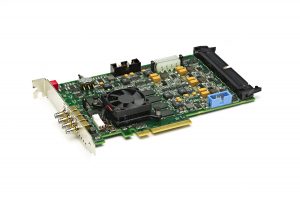

  Bitflow Coaxpress 2.0 Frame Grabber Photo Courtesy of BitFlow

BitFlow Claxon CLX-PC3-CXP4

• Half-size x8 PCI Express Gen 3.0 frame grabber
• CoaXPress 1.0/1.1/2.0 compliant
• Supports one to four CXP-12 cameras
• Supports CXP speeds from 3.25 to 12.5 Gb/s
