S-25A70Technical specifications for S-25A70 CoaXPress

Specifications
Features S-25A70
Sensor Vita 25k
Sensor type Global shutter CMOS
Optical size 35 mm
Pixel size 4.5 x 4.5 um
Resolution 5120 x 5120
Frame rate 72+ fps
Dynamic range 56 dB
SNR 42 dB
Spectrum  Mono / Bayer
Interface CoaXPress V1.1.1 QUAD
Size HxWxD 80 x 80 x 29 mm
Power <8 W

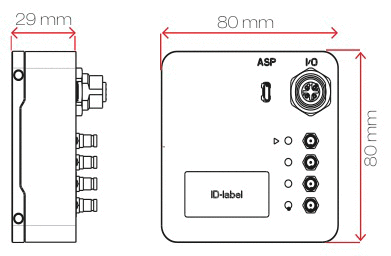

Outline

S25A70 dimensions

Advantages
  • 25 Mpx at 73 fps
  • CoaXPress QUAD
  • ROI imaging
  • Accurate sensor mounting
  • Low power
