CoaXPress QUAD Frame grabbers


Adimec CXP-6 cameras, like the S-65A35 and Q-12A180, are fully compliant to CoaXPress V 1.0 and 1.1. These cameras utilize the CoaXPress Quad version (4 x CXP-6).

CoaXPress CXP-6 Quad (4 x CXP-6) offers a peak transfer rate of 2 GByte/s with data transmission between the camera and frame grabber at up to 25 Gbits/s (4 x 6.25 Gbits/s). The power input to the camera is also enabled over the one CoaXPress interface cable. This is all with a cable length of up to 68 meters.

We work closely with frame grabber manufactures to ensure seamless integration with our cameras. Below is a list of available frame grabber models that can be used with the Adimec CXP-6 cameras. Frame grabber manufacturers are constantly creating new products. For the latest detailed information and availability of CoaXPress framegrabbers please go to the manufacturers’ website.

Model Description

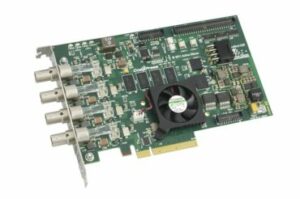

Firebird FBD-4xCXP6 PCIe 2.0 x8, PoCXP
Model Description
APX-3664 PCIe 2.0 x8, PoCXP
Euresys logo Model Description

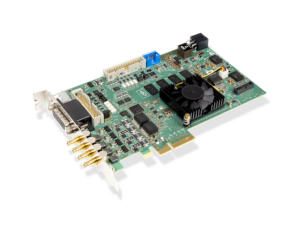

COAXLINK Quad PCIe 2.0 x4, PoCXP
Bitflow Model Description

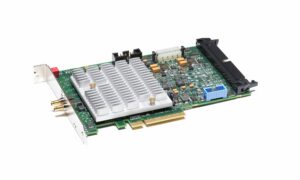

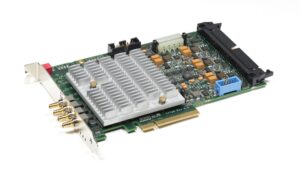

Cyton-CXP4 PCIe 2.0 x8, PoCXP
 Silicon software

Silicon Software

Model Description
microEnable 5 AQ8-CXP6D PCIe 2.0 x8, PoCXP


Model Description

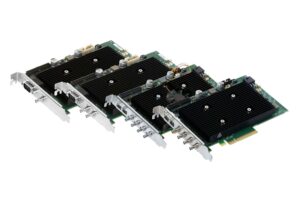

Rapixo CXP PCIe 2.0 x8, PoCXP
