CAMERAS FOR WAFER INSPECTION AND ADVANCED PACKAGING METROLOGY

icon image sensor

Cameras for semiconductor packaging inspection

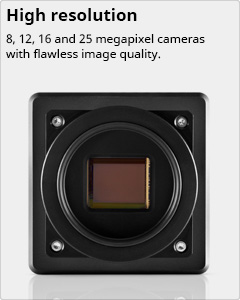

QUARTZ cameraThe principle goal of inline optical semiconductor inspection and metrology equipment is to provide 100% analysis at a high precision while maintaining high throughput. But to keep up with the innovations in packaging, the challenges to achieve this drastically increase. The fast-paced progress towards greater densities and finer dimensions are pushing the limits of vision systems. By selecting and utilizing the latest sensor technology, we design cameras that have the required resolution and speed. Driven by getting the best images out of sensors, we ensure predictable and stable equipment operation.

Based on our experience with 2D and 3D measurement methods, we design and tune our products for an exact fit into specific systems.

Cameras for semiconductor metrology and inspection equipment

Our machine vision cameras ensure predictable and stable operation for wafer inspection and metrology equipment.

Optical bump inspection equipment

Bump inspectionMachine vision cameras for optical recognition of:

  • Missing bumps
  • Bridges
  • Nodules
  • Bump shapes
  • Missing material

Component inspection

Component inspectionMachine vision cameras for optical 2D/3D inspection of:

  • BGA substrates
  • Lead frames
  • Surfaces
  • Marks
  • Post dicing
  • Packages

throughput

Throughput

Application specific sensor selection ensures higher throughput with higher accuracy.

Frame rate

To support equipment manufacturers in their challenge to gain throughput we use image sensors with high frame rates. These sensors require a design that can handle these high data rates within a critical timing tolerance to reliably produce quality images.
By our ‘design for quality’ philosophy, we make sure that these frame rates are really captured in a consistent and dependable way!

Field-of- View

Utilizing high-resolution high-speed sensors drives throughput in step-shoot-move inspection systems by both reducing scan time as well as the number of scan positions per object. Uniformity challenges increase as a larger optical field-of- view requires more complex optics and the increase of defects pixels in the sensor.
By grading the incoming sensor, dedicated processing and blemish elimination in our manufacturing process and camera operation, we deliver high resolution images with high uniformity.

semiconductor back-end

Predictable and stable performance

Consistent images quality over time and cameras.

Repeatability

Images out of a camera vary over time and temperature. Depending on the used measurement method, this may influence the predictability and stability of the inspection system. Using a policy of testing every camera against strict values, we guarantee stable performance of each camera and camera-to-camera.

Reliability

Inline inspection systems benefit from our robust designs. These designs result in highly reliable products and optimize the uptime of the system.

semiconductor back-end

Accuracy

Accuracy

Precise sensor alignment for optimal optical accuracy.

Optical Precision

To achieve high accuracy and precision, particular care has to be given to the optical design and precision of the image sensor placement, especially with high resolution. The alignment of the image sensor in the camera is key to have an optimal optical path. In our camera design and production process, special attention is given to the sensor alignment. This provides the accuracy for the overall system.

Sensor alignment

Recommended cameras

SAPPHIRE series

Global shutter CMOS

  • 4.5 um pixel size
  • 25 M at 32 fps
  • Camera Link
  • 80 x 80 x 44.7 mm
QUARTZ series

Global shutter CMOS

  • 5.5 um pixel size
  • 2M at 340 fps
  • 4M up to 180 fps
  • 12M up to 187 fps
  • Camera Link, CoaXPress
  • 80 x 80 x 29 mm
Norite series

Global Shutter CMOS

  • 4.8 μm pixel size
  • 5 Megapixel at 105 fps
  • CoaXPress at  CXP12 speed capability
