QUARTZ series: High speed CMOS global shutter cameras

QUARTZ series camerasThe Adimec QUARTZ series is the most versatile line of high-performance cameras in the market, offering a wide range of capabilities for a variety of applications. Through Adimec’s proprietary True Accurate Imaging® technology applied with state of the art global shutter CMOS image sensors, the QUARTZ series delivers an optimized combination of performance and measurement accuracy needed for specific system requirements.

The QUARTZ series is ideal for metrology and inspection equipment, and for moving from 2D to 3D inspection. QUARTZ cameras can be customized to meet your specific system application and architecture requirements.

QUARTZ Models

Q-4A180

Q-4A180
Q-4A150
Q-12A65

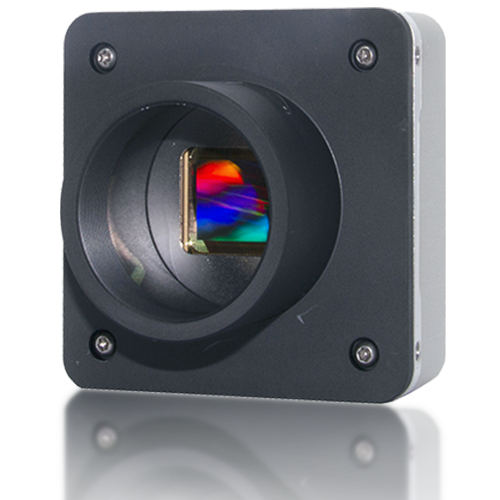

Q-12A180
Q-12A180

Q-2HFW
  • 2 Mpx
  • 550 fps
  • Global Shutter CMOS
  • CoaXPress V1.1.1 compliant
  • More specifications

Advantages

Q12A180 SpeedometerMore throughput without higher costs

The QUARTZ series of high resolution, high-speed metrology cameras enable greater throughput through increased data acquisition time and a reduced number of scan positions/images per device.

Go further with CoaXPress

Long length and Q12A180CoaXPress provides interfacing speeds beyond twisted pair connectivity options (e.g. Camera Link) and the convenience of video, power, command and control over flexible low-cost coax cables (up to 130 meters without repeaters).

Unsurpassed image quality

Q12A180 splashWith the minimal number of blemishes per individual camera through Active Sensor Control, the QUARTZ series offers the largest perfomance range results on CMOSIS CMV image sensors, as less severe corrections need to be done that can reduce the contrast range (DNR). All of the tunings involved are to guarantee the cameras consistently provide reliable image quality for accurate measurements.

Enhance the optical accuracy of your equipment

Optical path enhancement-anImprove measurement accuracy by optimizing the optical path between optics and sensor. The QUARTZ series cameras provide precise image sensor alignment and functionality for defect pixel and blemish correction. (Custom) factory sensor tuning maximizes the parameters most important for measurement accuracy. QUARTZ cameras can be provided with various coverglass options, such as specific anti-reflection coatings and removable coverglass.

QUARTZ Qs series: CMOS cameras for metrology & inspection

Introduction

Qs seriesThe QUARTZ Qs series are equipped with a pipelined global shutter CMOS sensor and embedded in a small footprint housing.

Pipelined global shutter technology assures low read noise combined with accurate shutter performance. All QUARTZ Qs series membrs are fitted with Adimec True Accurate Imaging(R) technology.

True Accurate Imaging is a combined set of image enhancement technologies enabling the best imaging performance for inspections and metrology applications.

Available Model

Qs-4A60
Common features
  • 4 Megapixels
  • Up to 90 full fps
  • Large FOV with excellent uniformity
  • Global shutter CMOS technology
  • True Accurate Imaging
  • Supports Camera Link
Applications
  • 2D AOI
  • 3D AOI
  • SPI
  • Wafer inspection
  • Component inspection
