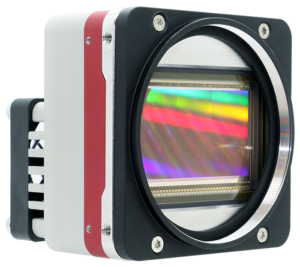

DIAMOND D-152A16-T CoaXPress camera

D-152A16x/CXP-T01

High Resolution Metrology Camera

The DIAMOND D-152A16-T CoaXPress camera delivers 152 megapixel images at 16 fps optimized for LCD, OLED, and MicroLED inspections. The TEC in combination with long exposure DSNU correction guarantee superb camera performance in challenging environments where the ambient temperature fluctuates.

  • GPIXEL GMAX32152
  • 16544 x 9200 pixels at 16 fps
  • Dynamic range > 66.4 dB
  • Designed for dark and bright inspection
  • Long exposure DSNU correction
  • Optimized for tool matching
  • Quad CXP-12 interface

Stabilized sensor temperature

icon image sensor

Active sensor alignment

Device-to-device repeatability

Specifications

Sensor
  • GPIXEL GMAX32152
  • Optical size: 60.6 mm
  • Resolution: 16544 (H) x 9200 (V)
  • Pixel size: 3.2 μm x 3.2 μm
  • Global Shutter CMOS
Monochrome / Color choices
  • Monochrome
  • Color
Interface
  • CoaXPress – CXP 3/6/10/12
  • 2 and 4 lanes configurable
Framerate
  • 16 fps
Performance
  • Dynamic range: >66.4 dB
  • Full well: 9.3 ke-
Image acquisition
  • Continuous or controlled
Triggering
  • Internal or external
Functionality highlights
  • Sensor temperature control
  • Defect pixel correction
  • Long exposure DSNU correction
  • Low Frequency Flat Field Correction
  • Frame averaging
  • Sensitivity matching
Output resolution
  • 8 / 10 / 12 bit
Dimensions

Weight
  • Camera incl heatsink and fan: 485 g
Power
  • Input voltage: 2 x 24 Vdc PoCXP
  • Power dissipation: < 13 W for camera
  • Power dissipation: < 13 W for TEC and fan
Operating temperature
  • Stabilized sensor temperature: +20 to +55 °C
  • Ambient temperature: +10 to +45 °C
Reliability
  • MTBF excl fan > 75000 h @ 30°C
  • MTBF incl fan > 70000 h @ 45°C
Testing

Every camera is 100% tested on all specifications

Accessories
  • TEC and fan included
  • Lensmount optional (M72-Mount)

APPLICATIONS

display inspection 2
microLED & OLED inspection
Display Inspection
LCD inspection
