D-103A12-T GMAX32103

D-103A12x/CXP-T01

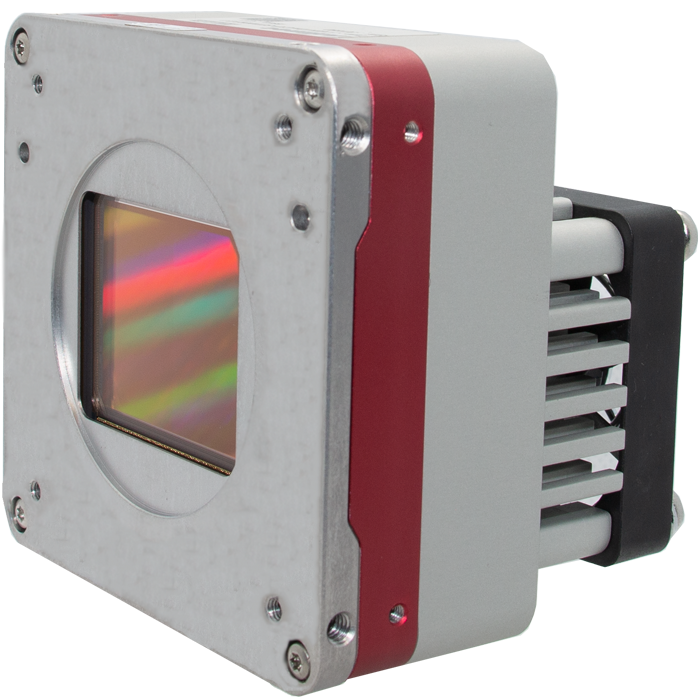

High Resolution Metrology Camera

The DIAMOND D-103A12-T CoaXPress camera delivers 103 megapixel images at 12 fps optimized for LCD, OLED, and MicroLED inspections. The TEC in combination with long exposure DSNU correction guarantee superb camera performance in challenging environments where the ambient temperature fluctuates.

  • GPIXEL GMAX32103
  • 11264 x 9200 pixels at 12 fps
  • Dynamic range > 66.4 dB
  • Designed for dark and bright inspection
  • Long exposure DSNU correction
  • Optimized for tool matching
  • Quad CXP-12 interface
Sensor
  • GPIXEL GMAX32103
  • Optical size: 46.5 mm
  • Resolution: 11264 (H) x 9200 (V)
  • Pixel size: 3.2 μm x 3.2 μm
  • Global Shutter CMOS
Monochrome / Color choices
  • Monochrome
  • Color
Interface
  • CoaXPress – CXP 3/6/10/12
  • 2 and 4 lanes configurable
Framerate
  • 12 fps
Performance
  • Dynamic range: >66.4 dB
  • Full well: 9.0 ke-
Image acquisition
  • Continuous or controlled
Triggering
  • Internal or external
Functionality highlights
  • Sensor temperature control
  • Defect pixel correction
  • Long exposure DSNU correction
  • Low Frequency Flat Field Correction
  • Frame averaging
  • Sensitivity matching
Output resolution
  • 8 / 10 / 12 bit
Dimensions

D-103A12-T

Weight
  • Camera incl heatsink and fan: 520 g
Power
  • Input voltage: 2 x 24 Vdc PoCXP
  • Power dissipation: < 13 W for camera
  • Power dissipation: < 13 W for TEC and fan
Operating temperature
  • Stabilized sensor temperature: +20 to +55 °C
  • Ambient temperature: +10 to +45 °C
Reliability
  • MTBF excl fan > 75000 h @ 30°C
  • MTBF incl fan > 70000 h @ 45°C
Testing

Every camera is 100% tested on all specifications

Accessories
  • TEC and fan included
  • Lensmount optional (F-Mount, T2-Mount, M42-Mount or TFL-II Mount)
