    Technical specifications for A-1000

    Specifications
    Features

     Adimec-1000
    Sensor

     2/3″ Interl. CCD
    Pixel size

     7.4 x 7.4 um
    Resolution

     1004 x 1004
    Frame rate

     50 fps
    Dynamic range

     62 dB
    Interface

     Camera Link
    Size (h x w x d)

     45 x 45 x 81 mm
    Weight

    185 g

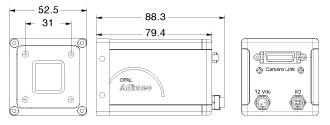

    Outline

    A-1000 drawing

    Key features
    • 1 Megapixel with 50 fps
    • 8 and 10 bit output (12bit optional)
    • Excellent channel matching
    • Very stable and accurate sensor mounting
    • Monochrome
    • Camera Link interface
    • Robust design
    • RoHS compliant
    Custom solutions

    For optimal integration, Adimec can customize this product to fit your needs. Contact us for more information.
