D-1.2

D-1.2A150s/CXP

High Speed & High Resolution SWIR Sensor

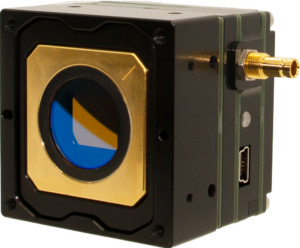

The DIAMOND SWIR D-1.2A150 is a high end CoaXPress Short-Wave Infrared (SWIR) camera based on the SCD Cardinal 1280 sensor. The camera operates 1280 by 1024 10 µm2 pixels at a maximum speed of 150 fps with a maximum quantum efficiency between 1100 and 1600 nm.

The D-1.2A150 offers an optimized image for in-line inspection and metrology with exact device-to-device repeatibility. If needed, the camera can be optimized to our customers’ application.

  • SCD Cardinal 1280
  • 1280 x 1024 10 µm2 pixels at 150 fps
  • High sensitivity up to 1600 nm
  • High MTF
  • Compact form factor for easy integration
  • Easy system integration through CXP-6 interface
  • Export license required for this product

High sensitivity up to 1600 nm

Compact outline

Low power, compact design

Easy system integration

Specifications

Sensor
  • SCD Cardinal 1280
  • Optical format: 16.4 mm
  • Resolution: 1280(H) x 1024(V)
  • Pixel size: 10 x 10 μm
  • QE: > 80% at 1550 nm
  • Short-Wave Infra Red (SWIR)
  • InGaAs progressive scan backside illuminated global shutter
Interface
  • CoaXPress – CXP 3/6
  • Single lane
Framerate
  • 150 fps
Performance (typical)
  • Dynamic range: > 69.4 dB
  • Full well: 1 Me-
Functionality highlights
  • Defect pixel correction
  • Intelligent non-uniformity correction
  • Controlled sensor temperature
Output resolution
  • 8 or 12 bit
Image acquisiton
  • Continuous or controlled
  • Internal CXP trigger
Dimensions



Weight
  • Camera excl. lensmount: 135 g
Power
  • Input voltage: 1 x 24 Vdc PoCXP
  • Power dissipation: typical < 4 W
Operating temperature
  • Operating temperature: +5°C  to +40°C
Testing
  • Every camera is 100% tested on all specifications
Accessories

Standard

  • No accessories

Optional

  • C-mount
  • Other lensmounts available on request

APPLICATIONS

wafer-500x500
Semiconductor Wafer Inspection
Chip inspection
Semiconductor Advanced Packaging
