Technical specifications TMX74

Sensor
  • IMX174
  • 1/1.2”
  • Global Shutter CMOS
Pixel size
  • 5.86 x 5.86 μm
Noise Equivalent Illumination

3200 K light source, typical value without lens

  • Monochrome: 0.019 mLux.s
  • Bayer & RGB Color: 0.093 mLux.s Green pixels
Video Output

Camera Link base

CoaXPress

SDI

  • 1920 x 1080
  • 60 fps progressive
  • Mono/ Color/ Bayer
Dynamic range
  • 74 dB
MTF

at 85 lp/mm (Nyquist)

  • 64%
Customization
  • All TMX models are customizable to fit specific system outline and/or functionality requirements.
  • Please contact us about your possibilities.
Cameras are available for evaluation purposes. Specifications are preliminary. Please contact your sales office for more information.

Triggering & External Sync.
  • I/O
  • Camera Link
  • CoaXPress
Communication
  • CoaXPress
  • 3G-SDI
  • Camera Link
Power
  • Input 10 – 30 Vdc
  • Consumption: < 3.2 W
Dimensions and weight

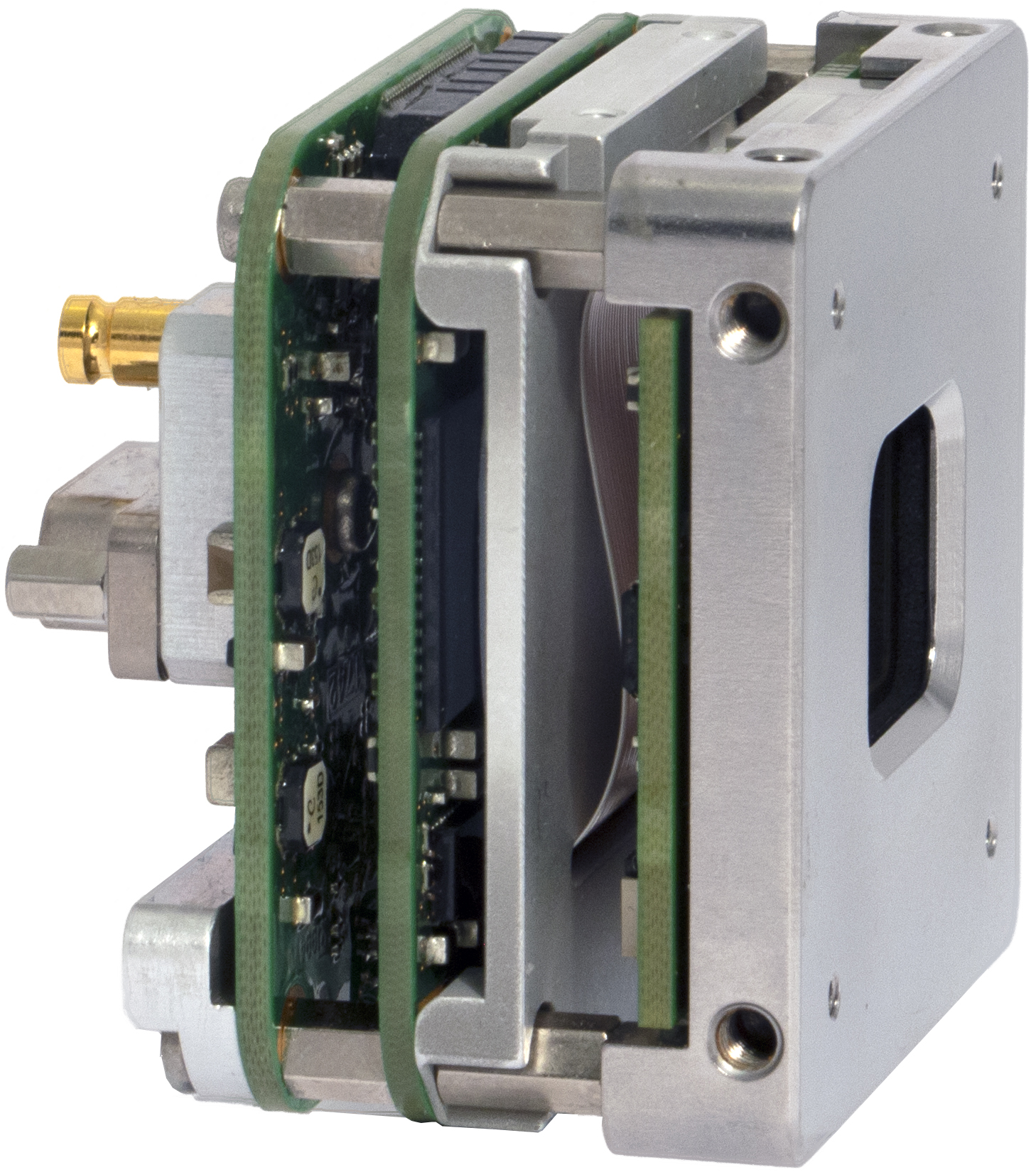

Board level Camera Link version

  • 44.5 x 44.5 x 41.3 mm
  • 130 g
TMX74 rugged cmos camera outline
Optical interface
  • Stainless Steel front plate 4 x M2 31mm pitch
  • C-Mount (Optional) with 2mm BG38 filter
Operating temperature
  • -40°C to +80°C
Reliability
  • MTBF > 30,000 h @ 55°C
  • Calculated according to MIL-HDBK-217F Notice 2
Compliance
  • CE
  • ROHS
  • MIL-STD-810G
Testing
  • Every camera is 100 % tested on all specifications
Video enhancement
  • Automatic exposure control
  • Automatic gain control
  • Automatic white balance
  • Contrast enhancement (VEM)
  • Defect pixel correction
  • Gamma correction
Signal processing
  • Image flip (H & V)
  • Region of interest
  • Bore sighting
  • Selectable cross hairs
  • Image tagging
  • 4 x eZoom
Service
  • Frame counter
  • Temperature readout
  • Elapsed time
  • Test pattern
  • Built-in tests
