OPAL-1000 | OPAL-1600 | OPAL-2000 | OPAL-4000 | OPAL-8000 | ||
Frame speedBetween brackets GigE frame speeds |
123 fps
(60 fps) |
70 fps
(34 fps) |
66 fps
(32 fps) |
32 fps(16 fps) | 16 fps
(8 fps) |
|
Resolution |
1024 x 1024 | 1600 x 1200 | 1920 x 1080 | 2336 x 1752 | 3269 x 2472 | |
Optical format |
1/2″ | 2/3″ | 2/3″ | 1″ | 4/3″ | |
Sensor technology |
TRUESENSE 5.5 micron Interline Transfer CCD
|
|||||
Dynamic range |
62 dB linear
|
|||||
Blooming & smear suppression |
Blooming: 300x Smear: -100 dB
|
|||||
Interface choices |
|
|||||
Image acquisition |
|
|||||
Monochrome / Color choices |
|
|||||
Triggering |
|
|||||
Power |
Input 10.2 – 27.6 Vdc
|
|||||

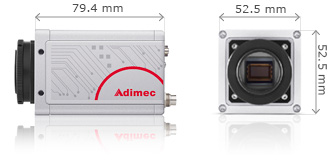

Dimensions |
||||||
Weight |
295 g (Including lensmount)
|
|||||
Optical interface choices |
C-Mount
|
|||||
Operating temperature |
-10°C to +50°C
|
|||||
Reliability |
MTBF > 75,000 h @ 40°C
|
|||||
Compliance |
CE , ROHS
|
|||||
Testing |
Every camera is 100 % tested on all specifications
|
|||||
Functions & features
|
|
