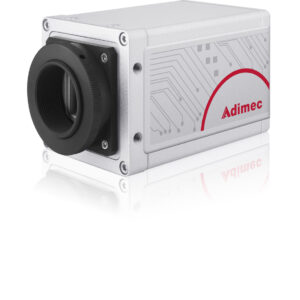

Technical specifications for Qs-4A60

The Qs camera is no longer recommended for new designs. For more information please contact our local sales office

Specifications
Features Qs-4A60
Sensor CMV4000
Sensor type Global shutter CMOS
Optical size 1″
Pixel size 5.5 x 5.5 um
Resolution 2048 x 2048
Frame rate 60 fps
Dynamic range 60 – 90 dB
Shot noise
improvement		 +8 dB
Spectrum  Mono / Color / NIR
Interface Camera Link
Size HxWxD 52.5 x 52.5 x 79.4 mm
Weight 295 g
Advantages
  • 4 Mpx at 90 fps(burst)
  • 60 fps sustained
    (3 Tap Camera Link base)
  • Flat field correction
  • ROI imaging
  • High Dynamic Range mode
  • Low power
Outline

qs 460

Customized Solutions

Adimec can customize this product to fit your needs. Contact us.

Tailoring2125

Next generation interface:CoaXPress

CoaXPress enables higher speed over longer cable lengths. Read more.

CXP125

Reliable performance

100 % tested 100 % reliable. Every camera is tested to deliver reliable performance.

reliable

Images you can count on!

Adimec True Accurate Imaging delivers reliable images. Read more.

TAI
