Technical specifications Q-2HFW

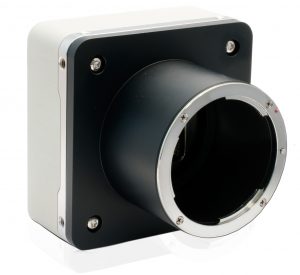

The Quartz 2Mpx CoaXPress camera brings a 1440×1440 resolution at up to 550 fps based on 12 micron pixels. The design of the pixels in this global shutter CMOS sensor is optimized for maximum full well performance. An industry unique FWC of over 2-million electrons per pixel results in extremely low shot noise performance of 63 dB SNR. This enables the detection of very weak contrast variations in bright environments.

Adimec offers the 2Mpx CXP camera in a low power, compact outline design, not requiring forced cooling through a fan. This provides optimal design freedom for integrating optics and placement in inspection tools and microscopes. Similar to
our Q-12A180, the high full well Quartz 2Mpx camera is based on Adimec’s new second generation CoaXPress V1.1.1 compliant 25Gb/s CoaXPress Quad interface. This interface is also fully backward compatible to existing V1.0 frame grabbers.

Technical specifications

  • 2 Mpx CMOS Global Shutter
  • Optical size: APS-C
  • Pixel size: 12 μm x 12 μm
  • 1440 x 1440 Resolution
Interface choices
  • CoaXPress
Max sustained frame rate
  • 550 fps
Dynamic range
  • max 65,5 dB (realized at unity gain)
Signal to noise
  • Up to 63 dB (at minimum gain)
Image acquisition
  • Continuous or controlled
Output resolution
  • 8 – 12 Bit (max 11 Bit A/D)
Monochrome / Color choices
  • Monochrome
  • Internal or external
Power input
  • 24 Vdc PoCXP
  • <7W dissipation
  • 80 mm x 80 mm x 29 mm

< 400 g excluding lens mount

Optical interface choices
  • F-mount (Optional: TFL-II, M42, T2, EF or no-mount)
Operating temperature
  • -10°C to +30°C or max housing temp 50°C
  • CE
  • ROHS
Functions & features
  • Region of interest
  • Analog sensor gain
  • Programmable offset ADC
  • Digital fine gain
  • Horizontal mirroring
  • Evaluation  units are available on request
  • Product is built to order only
  • Please contact us about your possibilities.
