D-65A09 CAMERA

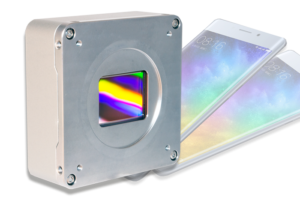

D-65A09 CXP-6 camera

High-resolution metrology camera







Specifications

Features	D-65A09
Sensor	GPIXEL GMAX3265
Sensor type	Global shutter CMOS
Optical format	37,4 mm (29.9 x 22.4 mm)
Pixel size	3.2 μm x 3.2 μm
Resolution	9344 (H) x 7000 (V)
Frame rate	9 fps
Dynamic range	59.7 dB @ 12 bit
Full Well	3 ke-
Power usage	< 13 W
Spectrum	Mono
Interface	CoaXPress – CXP 3/6 – DIN1
Output resolution	8 / 10 / 12 Bit

The D-65A09 is designed mainly for LCD inspection applications, which typically use long exposure times. It uses a single CoaXPress connection which provides a cost-effective system solution and still allows a throughput of 9 frames per second. The camera does include all the uniformity corrections that make the D-65 camera range perfect for display inspection.

Advantages

• 65 Mpx at 9 fps
• Mura dark correction
• Multi flat field corrections
• Multi-exposure mode
