SAPPHIREシリーズ

You are here:
  1. Home
  2. カメラ
  3. マシンビジョンカメラ
  4. SAPPH…

Productinformatie

Aanvullende bronnen

  • Download de cameravereisten voor 3D-metrologie ePaper
  • 25px;”] 3 redenen om over te stappen van CCD naar CMOS voor beeldscherminspectie
  • 40 ideeën om uw machinevisiesysteem te verbeteren [ /ultimate_icon_list_item]
  • Interfacevergelijkingen

    Adimec Blog

    Lees de nieuwste artikelen »

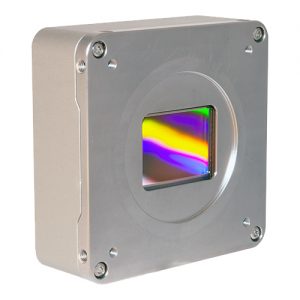

    S-65A70-cameraSAPPHIRE-serie: CMOS-camera’s met wereldwijde sluiterscan voor groot gebied

    Met de Adimec machine vision camera’s combineren we de hoogste resoluties, de maximale framesnelheden samen met een superieure beeldkwaliteit die uw veeleisende inspectieapparatuur ondersteunt

    Ontwerp met hoge snelheid en laag vermogen

    (Ultra) Hoge Resolutie
    • Resolutietrend richting 100+ megapixels.
    • Hoge framesnelheden.
    • Zeer gevoelige globale sluiterbeeldsensoren.

    [/] ][c_column vc_column_inner]

    Vereenvoudigd systeemontwerp
    • Ondersteunt tool-matching met herhaalbare camera’s.
    • Coax Perscamera’s
    • Thermisch ontworpen camera’s.

    [/] ][c_column vc_column_inner]

    Hoge beeldkwaliteit
    • In de fabriek gekalibreerde camera-uniformiteitscorrecties.
    • (Multi-set) Flat Field Corrections (FFC) voor niet-uniformiteiten in het systeem.
    • Fabrieksgekalibreerde defecte pixelcorrecties.

    SAPHIRE-modellen

    null

    The S-49A70 CoaXPress camera with GMAX3249

    • 49 Megapixel
    • 70 fps
    • GPixel GMAX3249
    • CoaXPress 4 x CXP-12

    More specifications

    null

    The S-49A35 CoaXPress camera with GMAX3249

    • 49 Megapixel
    • 35 fps
    • GPixel GMAX3249
    • CoaXPress 4 x CXP-6

    More specifications

    null

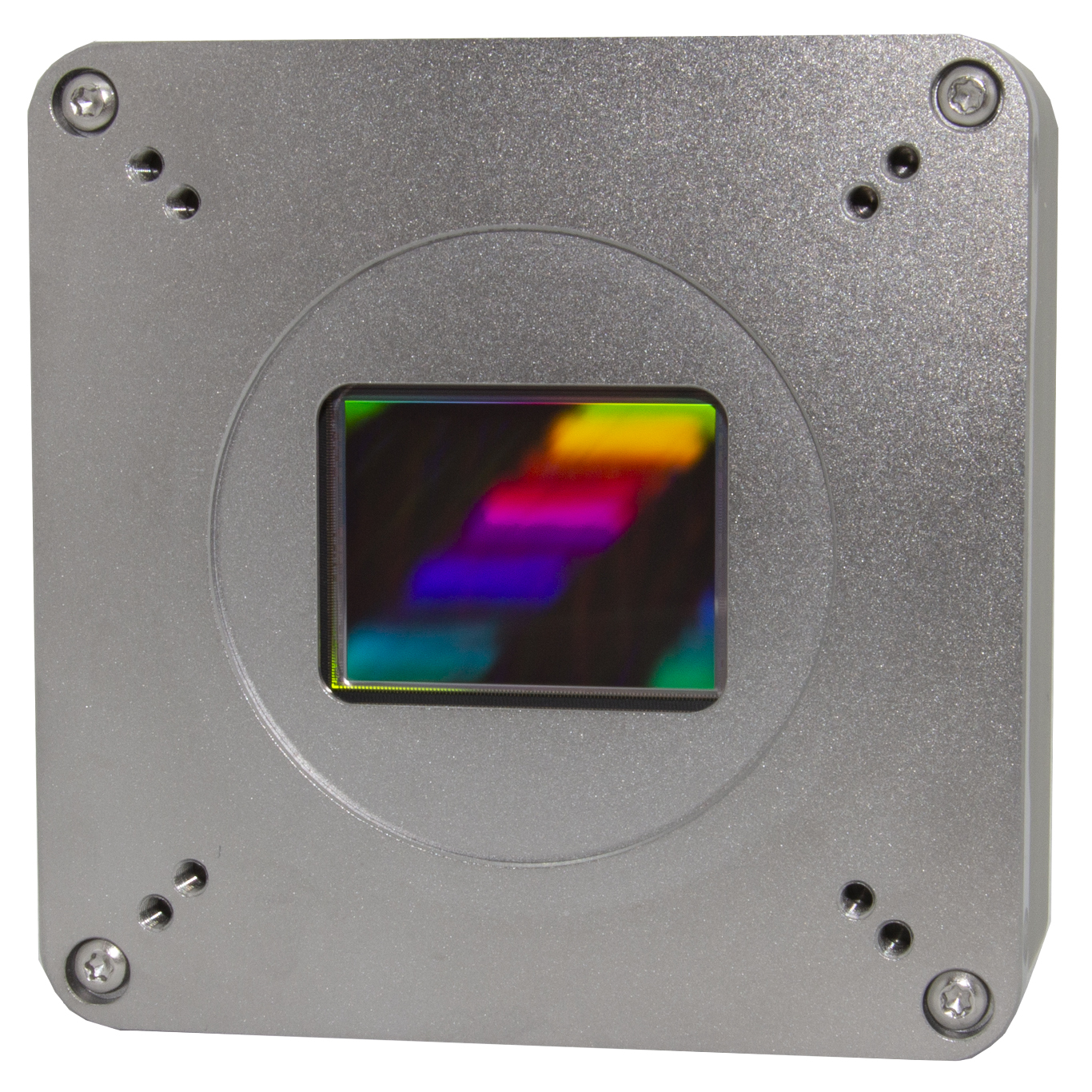

    De S-65A70 CoaXpress-camera met GMAX3265

    • 65 megapixels
    • 70 fps
    • GPixel GMAX3265
    • CoaXPress 4x CXP-12

    Meer specificaties

    null

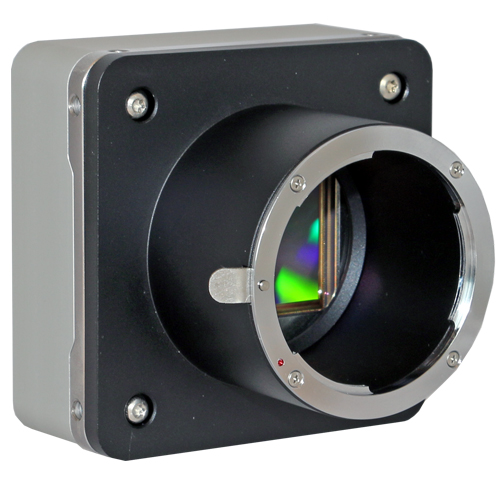

    The S-65A35 CoaXPress camera with GMAX3265

    • 65 Megapixel
    • 35 fps
    • GPixel GMAX3265
    • CoaXPress 4 x CXP-6

    More specifications

    S-25A80 CoaxPress
    S-25A80 CoaXPress

    • 25 Megapixel
    • 84+ fps
    • Python25K
    • CoaXPress 4 x CXP-6

    More specifications

    S-25A70 CoaxPress
    S-25A70 CoaXPress

    • 25 Megapixel
    • 72+ fps
    • VITA 25K
    • CoaXPress 4 x CXP-6

    More specifications

    S-25A30
    S-25A30 Cameralink

    • 25 Megapixel
    • 32 fps
    • VITA 25K
    • Camera link

    More specifications

    S-50A30 CXP
    S-50A30 CoaXPress

    • 50 Megapixel
    • 30 fps
    • CMV50000 CMOS
    • CoaXPress 4 x CXP-6

    More specifications

    Images with minimal blemishes

    actieve sensorbesturingThe Sapphire series eliminates typical large area scan artifacts present in VITA 25K via Active Sensor Control, a practical and easy to use embedded semi-automatic calibration function. It calibrates the camera without involving up-loading images to a PC. With Active Sensor Control the 25 megapixel technology can optimally be used for accurate inspection and metrology applications. Click here to read more about Active Sensor Control.

    High uniformity by flat field correction

    The embedded global flat field correction (real-time FFC per pixel) allows to derive a high uniform image regardless of non-uniform lighting exposure and distortions in the optical path towards the sensor. This embedded functionality offers performance enhancement while off-loading processing needs from the frame grabber and simplifies development efforts at system integration.

    Regions of interest

    Using the region of interest in this camera does not only increase the frame rate but offers new possibilities to capture images. The combination of large sensor width (up to 5k per line) and the ROI functionality of the image sensor creates new area scan camera applications you never thought of before. Contact us to discuss these new possibilities.

    No PC required

    Zowel Active Sensor Control als Flat Field Corrections zijn eenvoudig te gebruiken door de kalibratie-algoritmen die in de camera zijn ingebouwd en kunnen eenvoudig in het veld worden toegepast.Opslag van de FFC-kalibratiekaart in de camera ondersteunt hergebruik van de FFC-set(s) ) na verloop van tijd met onmiddellijke beschikbaarheid na het inschakelen van de camera.
