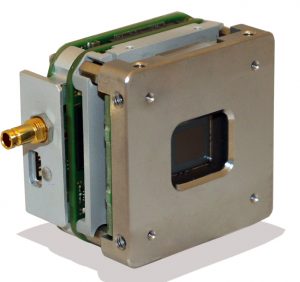

TMX-53

Technical specifications TMX-53

Sensor

• IMX253
• 1.1” format
• Global Shutter CMOS

Pixel size

• 3.45 x 3.45 μm

Noise Equivalent Illumination

3200 K light source, typical value without lens, no filter, 24 dB gain

• Monochrome: 0.009 mLux^.s
• Bayer & RGB Color: 0.015 mLux^.s Green pixels

Video Output

CoaXPress

• 4096 x 3008
• Up to 30 fps
• Mono/Color/Bayer

Dynamic range

• 71,6 dB

Customization

• All TMX models are customizable to fit specific system outline and/or functionality requirements.
• Please contact us about your possibilities.

¹ Model dependent

Cameras are available for evaluation purposes. Specifications are preliminary. Please contact your sales office for more information.

Triggering & External Sync.

• CoaXPress software controlled with 4ns resolution

Communication

• CoaXPress

Power

• According to PoCXP CoaXPress V1.1.1
• Consumption: < 5 W @ 24 Vdc full continuous operation at max framespeed

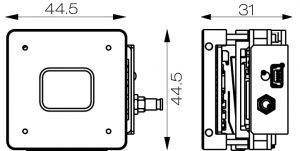

Dimensions and weight

• 44.5 x 44.5 x 31.85 mm
• 110 g

Optical interface

• 4 x M2.5 at 32 mm pitch
• C-Mount (Optional) with 2mm BG38 filter, other filters on request

Operating temperature

• -45°C to +80°C  – no damage
• -10°C to +60°C  – full performance

Reliability

• >30,000 hours at +55°C for Airborne Inhabit Fighter >120,000 hours at 55°C for Ground Fixed uncontrolled environment, calculated according to the part stress analysis of MIL-HDBK-217F Notice 2 for ground uncontrolled environments

Compliance

• CE
• ROHS
• MIL-STD-810G
• MIL-HBK-217

Testing

• Every camera is 100 % tested on all specifications

Video enhancement¹

• Automatic exposure control
• Automatic gain control
• Automatic white balance
• Contrast enhancement (VEM)
• Defect pixel correction
• Gamma correction

Signal processing

• Image flip (H & V)
• Region of interest
• Bore sighting
• Selectable cross hairs
• Image tagging
• 4 x eZoom

Service

• Frame counter
• Temperature readout
• Elapsed time
• Test pattern
• Built-in tests
