OPAL seriesPotential Additional Sensor Options
7.4 micron CCD

Available through customer special solutions*

Image Sensor
KAI-02170 KAI-04070
Frame speed
60 fps 28 fps
Resolution
1920 x 1080 2048 x 2048
Optical format
1″ 4/3″
Sensor technology

TRUESENSE 7.4 micron Interline Transfer CCD



TRUESENSE 7.4 micron Interline Transfer CCD



Dynamic range

70 dB linear



70 dB linear



Blooming & smear suppression

Blooming: 1000x

Smear: -115 dB



Blooming:  1000x

Smear:  -115 dB



Possible Camera Options

Interface choices
  • Camera Link
  • GigE Vision
Image acquisition
  • Continous
  • Controlled
  • Delayed Transfer
  • Double Transfer
  • Delayed Double transfer
Monochrome / Color choices
  • Monochrome
  • Color
Triggering
  • Internal
  • external
Power

Input 10.2 – 27.6 Vdc

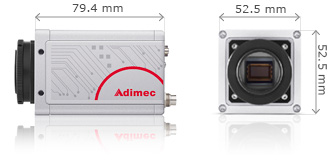

Dimensions
IAMGE

Opal series outline

Weight

295 g (Including lensmount)

Optical interface choices

C-Mount

Operating temperature

-10°C to +50°C

Reliability

MTBF > 75,000 h @ 40°C

Compliance

CE , ROHS

Testing

Every camera is 100 % tested on all specifications

Functions & features



  • Defect pixel correction
  • Mirroring
  • ROI
  • Increase speed via partial scan
  • Auto Exposure Control
  • Contrast enhancement (VEM)
  • Pixel remap
  • Digital fine gain
  • Programmable I/O



* Available for qualified programs – contact us for more information
