S-25A80 CoaXPress

Technical specifications for S-25A80 CoaXPress

Specifications

Features	S-25A80
Sensor	Python25k
Sensor type	Global shutter CMOS
Optical size	35 mm
Pixel size	4.5 μm x 4.5 μm with micro lenses
Resolution	5120 (H) x 5120 (V)
Frame rate	(8bit 4x CXP6) 84+ fps
Dynamic range	59 dB linear
Full Well	12 ke- (max)
Power usage	≤ 9.5 W
Spectrum	Mono / Bayer
Interface	CoaXPress V1.1.1 QUAD
Size HxWxD	80 x 80 x 29 mm

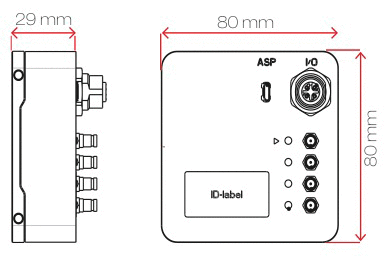

Outline

Advantages

• 25 Mpx at 84+ fps
• CoaXPress QUAD
• ROI imaging
• Accurate sensor mounting
• Low power
