Technical specifications for A-1000

Specifications
Features

 Adimec-1000
Sensor

 2/3″ Interl. CCD
Pixel size

 7.4 x 7.4 um
Resolution

 1004 x 1004
Frame rate

 50 fps
Dynamic range

 62 dB
Interface

 Camera Link
Size (h x w x d)

 45 x 45 x 81 mm
Weight

185 g

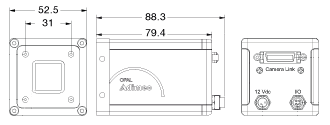

Outline

A-1000 drawing

Key features
  • 1 Megapixel with 50 fps
  • 8 and 10 bit output (12bit optional)
  • Excellent channel matching
  • Very stable and accurate sensor mounting
  • Monochrome
  • Camera Link interface
  • Robust design
  • RoHS compliant
Custom solutions

For optimal integration, Adimec can customize this product to fit your needs. Contact us for more information.
