Technical specifications for A-4020

Specifications
Features

A-4020

Sensor

 4/3″ Interline CCD

 Pixel size

 7.4 x 7.4 um

Resolution

2048 x 2048

Frame Rate

 16 fps

Sensitivity

 2.7 Lux

Dynamic Range

62 dB

Interface

 Camera Link

Size (h x w d )

 52.5 x 52.5 x 79.4 mm

Weight

250 gr

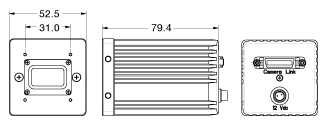

Outline

A-4020

Key features
  • 4 Megapixel with 16 fps
  • 8 and 10 bit output (12 bit optional)
  • Excellent Channel Matching
  • Very stable and accurate sensor mounting
  • Monochrome
  • Camera Link Interface
  • Robust design
  • RoHS compliant
Custom solutions

For optimal integration, Adimec can customize this product to fit your needs. Contact us for more information.
