TMX DHD series: Full HD electro-optical sensor module
The TMX-DHD series increases detection, recognition and identification capabilities which make them ideal for extreme outdoor usage at sea, on land and in the air. The TMX-DHD cameras provide Full HD images at 30 or 60 frames per second. Based around sensitive CCD image sensors, these rugged cameras deliver crisp images from dawn until dusk. The TMX-DHD series have embedded image enhancement functionality and offer a clear view, even in challenging light conditions, such as fog. The compact remote head, cube, or board-level design simplifies integration with an easy fit into existing system architectures.
TMX-DHD Models
TMX6-DHD
- ICX-674
- 2/3” Interline CCD
- 1920 x 1080
- Up to 60 fps
- Mono / color
- More specifications
TMX7-DHD
- ICX674
- 2/3” Interline CCD or
- 1920 x 1080
- Up to 60 fps
- Mono / color
- More specifications
TMX8-DHD
- ICX817
- 1/2″ Interline CCD
- 1920 x 1080
- 30 fps
- Mono / color
- More specifications
TMX9-DHD
- ICX817
- 1/2″ Interline CCD
- 1920 x 1080
- 30 fps
- Mono / color
- More specifications
Advantages
Full HD (1920 x 1080) at 30 or 60 fps
Equipped with a full HD sensor the TMX-DHD series delivers crisp and clear real-time images, even at 60 frames per second. The full high definition resolution increases detection, recognition, and identification ranges.
Image enhancement features
The TMX-DHD series cameras are equipped with image enhancement functions, such as contrast enhancement. This function eliminates the effects of a hazy atmosphere due to fog and/or sunlight scattering. Even in diffused scenes where no details are visible a remarkably detailed picture is presented.

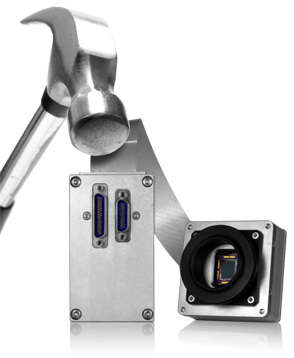

Rugged design
The TMX-DHD rugged COTS cameras have been put to the test in harsh environmental conditions including shock, vibration, and wide temperature fluctuations. These solutions are fully qualified using the MIL-STD-810 to meet the stringent requirements of outdoor imaging systems. Learn more…

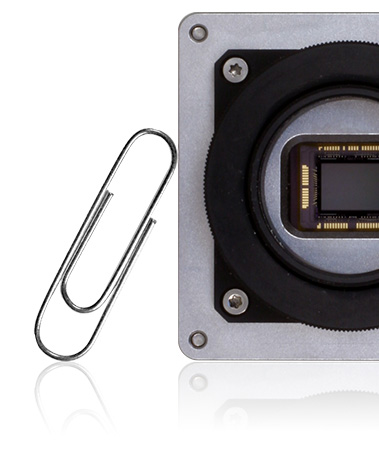

Compact & light design
Customer’s system constraints are minimized by the small dimensions and low weight of the TMX-DHD models. The remote head of the TMX6-DHD not only results in a lightweight and small sensor head but also high image quality and performance.
Cameras are available for evaluation purposes. Specifications are preliminary, and many alternative features and configurations are available. Please contact your sales office for more information.
