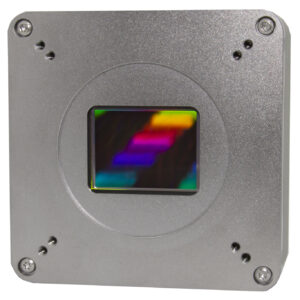

S-65A70-Kx/CXP-12

High Resolution Metrology camera

The SAPPHIRE S-65A70 offers the next leap for ultra-highresolution in-line inspection tools and real time medical imaging by combining 65 megapixel together with frame speeds up to 70 frames per second. The camera delivers a superior performance with a resolution of 9344 x 7000 pixels, high sensitivity, low noise levels and good dynamic range. With a pixel size of 3.2 μm2 this sensor has the right balance between performance, good angular sensitivity and optical format for cost effective optics. The camera functionality is compatible with other cameras in the SAPPHIRE series: S-25, S-50 and S-65A35.

Typical application examples:

Semiconductors metrology tools; Flat panel glass inspection; Solar panel inspection; Medical.

Specifications

Features S-65A70
Sensor Gpixel GMAX3265
Sensor type Global shutter CMOS
Optical format 37,4 mm (29.9 x 22.4 mm)
Pixel size 3.2 μm x 3.2 μm with micro lenses
Resolution 9344 (H) x 7000 (V)
Frame rate 70 fps
Dynamic range 62.3 dB
Full Well 10.9 ke-
Power usage < 15 W
Spectrum  Mono / Color
Interface CoaXPress – CXP 3/6/10/12 – 1, 2, 4 lanes configurable
Output resolution 8 / 10 / 12 Bit

Advantages

  • 65 Mpx at 70 fps
  • CoaXPress QUAD
  • Accurate sensor mounting
  • Low power
