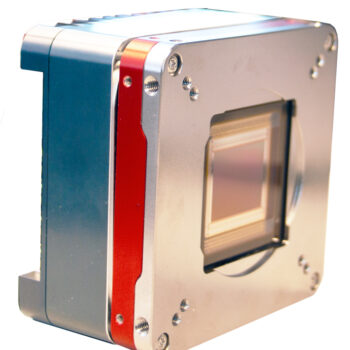

EXPECTED : THE Q-21A230 CXP CAMERA

Technical specifications



Q-21A230 GPIXEL CXP GSPRINT4521
Sensor
  • GPIXEL GSPRINT4521
  • Pixel size: 4.5 μm x 4.5 μm
  • CMOS progressive scan Global Shutter
Interface
  • CoaxPress V1.1.1 CXP3/6/10/12 – 2 and 4 lanes configurable
Max sustained frame rate
  • 230 fps
Dynamic range
  • 66,5 dB
Power usage
  • < 15 W @ 24 Vdc full continuous operation at maximal framespeed
Image acquisition
  • Continuous / Controlled
Output resolution
  • 8, 10 or 12 bit
Monochrome / Color choices
  • Monochrome
  • Color
Triggering
  • Internal or external
Power
  • input voltage : 2 x 24 Vdc nominal, range: 18.5 Vdc to 26 Vdc PoCXP
Dimensions

Q-21A230 outline drawing

Weight

(including standard lens mount; lens mount 160g)

  • Total: 600 g
  • Optical interface choices

    Standard

    • 4 x M3 at 60mm pitch – 4 x M3 at 54mm pitch – 50mm G7 reference

    Optional

    • F
    • TFL-II
    • T2
    • M42
Sensor temperature
  • +5°C to +70°C
Reliability
  • MTBF > 75,000h @ 30°C calculated according to the part stress analysis of MIL-HDBK-217F for ground fixed, uncontrolled environment.
Compliance
  • CE
  • ROHS
Testing
  • Every camera is 100 % tested on all specifications
Functions & features
  • Defect Pixel Correction
  • Region of Interest
  • Programmable I/O
  • Image Flip
  • Frame Counter
  • Video LUT
  • Analog Sensor Gain
  • Digital Fine Gain
  • Automatic Black Level Control
  • Dark and bright uniformity corrections
  • Pixel based DSNU or dark correction
  • Up to 50 Low Frequency Flat Field correction sets to correct for different illumination conditions.
  • Non-Volatile Calibration Data Storage
Customization

All QUARTZ models are customizable to fit a specific system outline and/or functionality requirements.

Please contact us about your possibilities.
