Q12A180 specificationsTechnical specifications for Q-12A180

Click here for compatible frame grabbers

Sensor
  • CMV12000
  • Optical size: APS-C
  • Pixel size: 5.5 x 5.5 μm
  • Global shutter CMOS
Interface
  • CoaXPress – Configurable 1, 2 or 4 lanes or CXP3 or CXP6 V1.1
Max sustained frame rate
  • 187 fps
Dynamic range
  • 60 dB* (>54 dB linear)
Power usage
  • < 13 W
Image acquisition
  • Continuous or controlled
Output resolution
  • 8 or 10 bit
Monochrome / Color choices
  • Monochrome
  • Color
Triggering
  • Internal or external
Power
  • Input 24 Vdc PoCXP
Dimensions

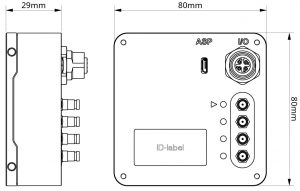

Q-12A180 dimensions
Weight

(including standard lens mount; lens mount 160g)

  • Total: 540 g
  • Optical interface choices

    Standard

    • F-Mount

    Optional

    • T2 -Mount
    • EF-Mount
    • M42-Mount
    • TFL-II Mount
Operating temperature
  • -10°C to +30°C or max housing temp 50°C
Reliability
  • MTBF > 75,000 h @ 40°C
Compliance
  • CE
  • ROHS
Testing
  • Every camera is 100 % tested on all specifications
Functions & features
  • Defect Pixel Correction
  • Region of Interest
  • Programmable I/O
  • Image Flip
  • Frame Counter
  • Video LUT
  • Analog Sensor Gain
  • Digital Fine Gain
  • Automatic Black Level Control
  • Dark and bright uniformity corrections
  • Pixel based DSNU or dark correction
  • Up to 50 Low Frequency Flat Field correction sets to correct for different illumination conditions.
  • Non-Volatile Calibration Data Storage
Customization
  • All QUARTZ models are customizable to fit a specific system outline and/or functionality requirements.
  • Please contact us about your possibilities.
